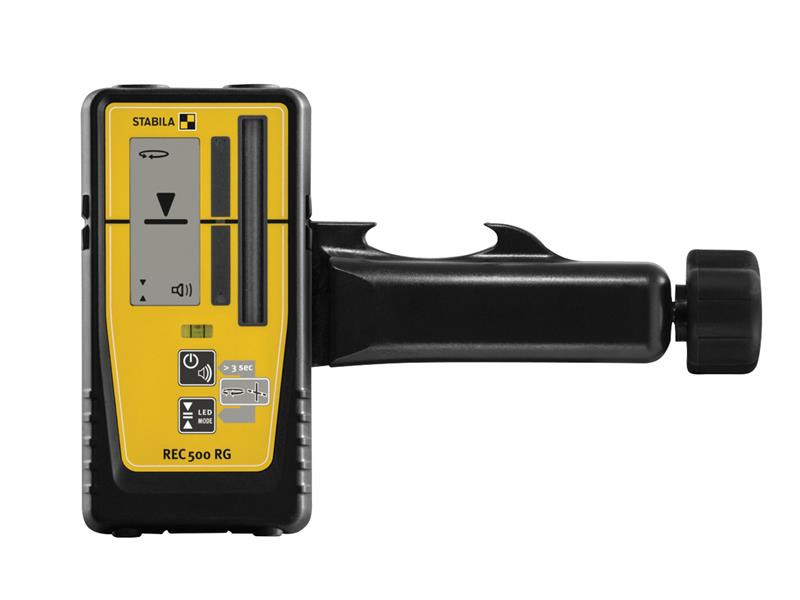

Stabila STBREC500 REC 500 RG Rotation and Line Receiver

Product Overview:

The Stabila REC 500 RG Rotation and Line Receiver quickly and accurately determines the beam position of rotation lasers or pulse-modulated line lasers with red or green laser diodes, even over large distances outdoors or in bright indoor lighting.

Product advantages

• Universal laser receiver for quickly and accurately determining the beam position of rotation lasers or pulse-modulated line lasers with red or green laser diodes – even over large distances outdoors or in bright indoor lighting.
• Two-sided digital display for fast work.
• Visual indication with arrow symbols on the display shows the position of the receiver relative to the reference plane of the laser – multi-colour LED guidance (red, orange, green) can be activated.
• Acoustic guidance can be activated with beeping tones for which the volume can be set.
• Four sensitivity levels can be set for application-oriented work: ± 0.3 mm (very fine), ± 1.0 mm, ± 2.0 mm, ± 5.0 mm (very coarse).
• Waterproof and dust-proof in accordance with protection class IP 67 – optimum protection against rain during outdoor use and against dust during drywall construction.
• Range of mounting options – holder for attaching to levelling rods as well as integrated magnet system.
• Battery life: 50 hours.

It has a two-sided digital display for fast work. Visual indication with arrow symbols on the display shows the position of the receiver relative to the reference plane of the laser. It also has optional multi-colour LED guidance (red, orange, green) and acoustic guidance (beeping tones for which the volume can be set). With four sensitivity levels for application-oriented work: ± 0.3mm (very fine), ± 1.0mm, ± 2.0mm, ± 5.0mm (very coarse).

The casing is waterproof and dustproof in accordance with protection class IP67; providing protection against rain during outdoor use and against dust during drywall construction. It has a variety of mounting options, a holder for attaching to levelling rods and an integrated magnet system.

Specification:

Battery Life: 50 hours
Protection Class: IP67
