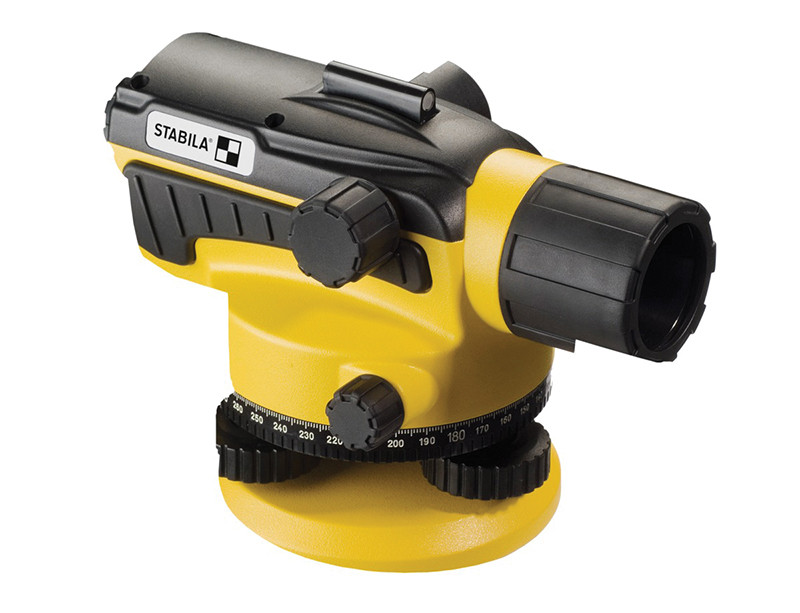

Stabila STBOLS26 OLS 26 Optical Level

Product Overview:

Stabila OLS 26 Optical level with a 26-fold magnification in optical system. No batteries required to use with the focusing and easily accessible adjusting screw. It has a robust IP54 protection rated casing with easy-grip, shock-absorbing soft shell and solid protection of optical unit.

Product advantages

• Optical level with 26x magnification for easy readings and transfer of height differences, even over large distances.
• Easy-to-access and simple-to-operate focussing and adjusting screws for setting the level quickly – measurements can then be read directly.
• Tough and easy-to-grip housing.
• The optical system is protected at the front by a large soft-grip cover.
• Levelling plate with 360° gradations.
• Protection class IP 54.
• 5/8“ thread for attaching to a tripod.
• 2 m long geo-folding rule: long-distance visible scale with 'E' gradations on one side and classic metric scale on the other.
• Plumb line including line for exact positioning of the optical level via a reference point for use on a tripod.
• Includes rain protection and adjusting tools.
• Stable carrying case for easy transport and safe storage.

Supplied with: 1 x Geo-folding Rule 2m, 1 x Plumb Line, Rain Protection, Adjusting Tools and 1 x Robust Carry Case.

Application examples

• Use in gardening and landscaping, when carrying out bricklaying and in reinforced concrete construction – to measure elevations and transfer heights.

Specification:

Accuracy of Height (Single Measurement): 1mm/10m
Min. Focussing Distance: approx. 1m
Objective Lens Aperture: 38mm
Standard Deviation: < 2mm/km
Magnification: 26-fold
Protection Class: IP 54
