Stabila STBLAX50G LAX 50 G Cross Line Laser

Product Overview:

The Stabila LAX 50 G Cross Line Laser is self-levelling for working quickly and directly on the laser lines. It uses STABILA GREENBEAM technology that has especially bright, fine, green laser lines for optimum visibility which is up to 30% sharper than red lasers up to 30m. The rotating multipurpose platform allows for flexible positioning on the floor or tripods (1/4in and 5/8in threads), as well as on metal objects with the strong rare earth magnetic system.

Performance and flexibility are the standout features of the LAX 50 G cross line laser. If you are an expert who really values an exceptionally easy-to-see laser cross, then you are sure to be impressed by the innovative STABILA GREENBEAM technology. The practical multi-purpose platform is the perfect addition to the easy-to-operate laser. Thanks to the flexible range of attachment options, you can position the laser to the desired working height. Reap the benefits of this true all-rounder for interior construction.

Product advantages

• Self-levelling cross line laser with exceptionally bright, fine, green laser lines – with perfect visibility at distances of up to 30 m thanks to STABILA GREENBEAM technology.
• Extremely versatile for working quickly and directly on long laser lines – 1 horizontal line, 1 vertical line.
• The latest generation of energy-saving laser diodes with an operating time of up to 7 hours.
• Quick self-levelling function thanks to pendulum technology designed for the construction site.
• Rotating multi-purpose platform for flexible positioning of the laser on the floor and on tripods (1/4" and 5/8" threads). Strong rare-earth magnet system for securely attaching the platform to metal objects such as U-profiles. Hanging hole for wall attachments.

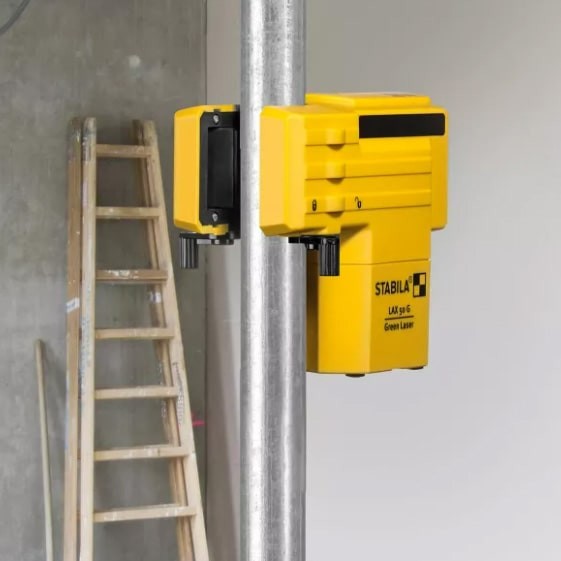

• Integrated clamping device on the laser for pipe attachments (maximum diameter: 30 mm).
• Protection class IP 53: protection against dust deposits inside and against spray (up to 60° on the vertical plane).
• Belt pouch for easy transport and safe storage.

Kit includes:

Multipurpose platform
Belt pouch for easy transport and storage
3 x AA batteries

Application examples

• For joinery – aligning and installing kitchen cupboards, aligning worktops.
• For electrical installation work – aligning plug sockets, light switches or cable ducts.

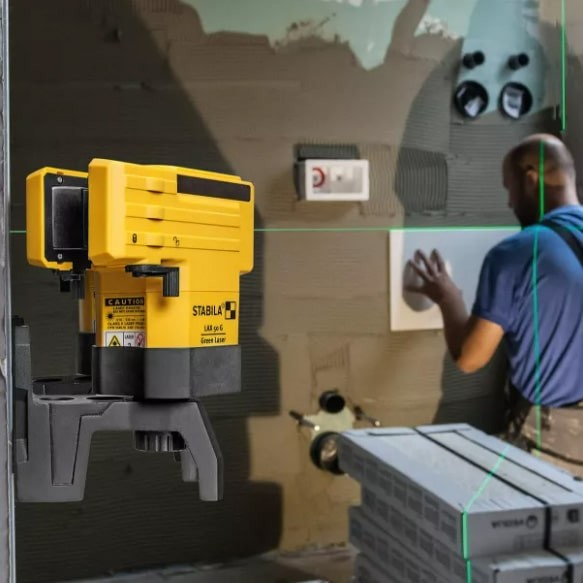

• For tiling work – marking out the tile layout.
• For installation work in sanitation, heating and air conditioning – aligning pipe clips and lines.
• For decorating – masking work, attaching borders with adhesive, wallpapering.

Specification

Level Accuracy: ± 0.5mm/m.
Working Range: 30m.
Power: 3 x AA batteries (supplied).
Tripod Thread: 1/4in & 5/8in.
Protection Class: IP53.
Operating Life: up to 7 hours.

Compatible with both STBBSTKM & STBBSTKL tripods
