Stabila STBLAX50 LAX 50 Self Levelling Laser 16789

Product Overview:

The Stabila LAX 50 projects crossed horizontal and vertical lines in a matter of seconds - both perfectly levelled. Ready for all internal work, the result - long, easily visible horizontal and vertical laser lines at right angles to each other which make setting-out easy. For the installation of built-in furniture, laying tiles, wallpapering and all installation work. Setting out without a single pencil mark - that's clean working!

This self levelling laser is the one if you are looking for a less expensive alternative. The laser comes with an innovative tripod which can be transformed in a few minutes into an extension pole, this flexible solution solves all of your levelling needs. Whether you're working in a tight space or large area, levelling time will be dramatically cut down on any indoor job.

Product advantages

• Self-levelling cross line laser which is incredibly user-friendly thanks to its single-button system.
• Long, very visible horizontal and vertical laser lines – visible up to distances of 10 m.

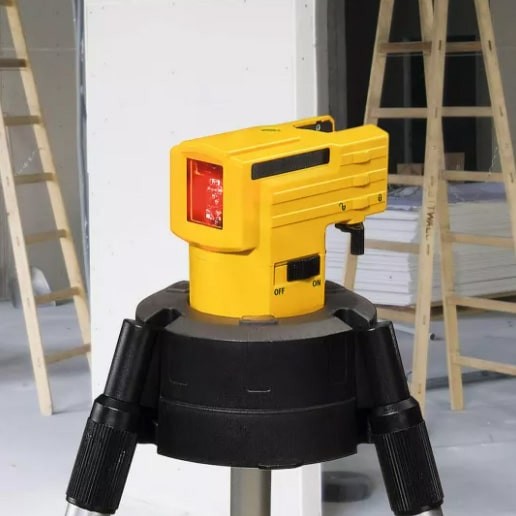

• The highlight: the tripod/telescopic support combination for flexible positioning of the laser at the desired working height.
• The tripod covers a working height of between 60 and 100 cm.
• The laser can be rotated 360° on the tripod.

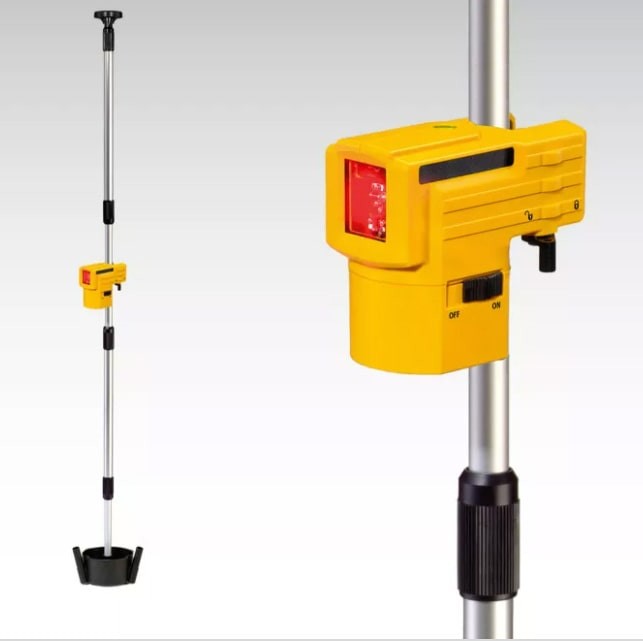

• The tripod legs can alternatively be connected to form a telescopic support – the laser can be positioned as desired up to a height of 275 cm.
• Quick self-levelling function thanks to pendulum technology designed for the construction site.
• Protection class IP 53: protection against dust deposits inside and against spray (up to 60° on the vertical plane).
• Range of attachment options for the telescopic support: between the floor and the ceiling, in window bays or in door frames.
• Integrated clamping device is also suitable for fixing to heating pipes.

Supplied with a combined tripod / telescopic leg kit.

Unscrew the tripod legs and screw together to form the telescopic leg - fix the LAX50 to the leg - and measure! The tripod covers a space of 0.6-1m. The telescopic leg can be fixed between floor/ceiling heights of up to 2.75m. If the LAX50 is placed on the ground, its working height is 7cm. Its versatility makes the STABILA LAX50 a regular partner for many applications.

Application examples

• For tiling work, for example, adjusting wall and floor tiles.
• For joinery, for example, parallel alignment of top and bottom cupboards.
• For plumbing work, for example, horizontal and vertical alignment of pipe clips.
• For electrical installation, for example, aligning wires or cable ducts.
• When decorating, for example, putting up wallpaper and borders.

Specification

Level Accuracy:± 0.5mm/m
Self-Levelling Range: 4°± 0.5°
Working Range: 10m
Power: 3 x AA batteries (supplied)
Average Battery Life: 30 Hours
Tripod Thread: 1/4in
Laser Class: 2
