Stabila STBLAX400 LAX 400 Self-Levelling Multi-Line Laser

Product Overview:

The LAX 400 brings high-end laser performance to all your jobs. It’s a complete solution combining multi-laser functions for all of your indoor aligning and levelling work, reducing mark-up time to a minimum. With the help of the STABILA MANUAL ALIGNMENT technology the projected 90° angle can be manually rotated without losing the position of the plumb-line dot. This is essential for the precise control of axes. Indoor horizontal levelling tasks are solved thanks to a continuous 360° line. This makes the LAX 400 a cutting-edge laser for all those who want to work smarter and better.

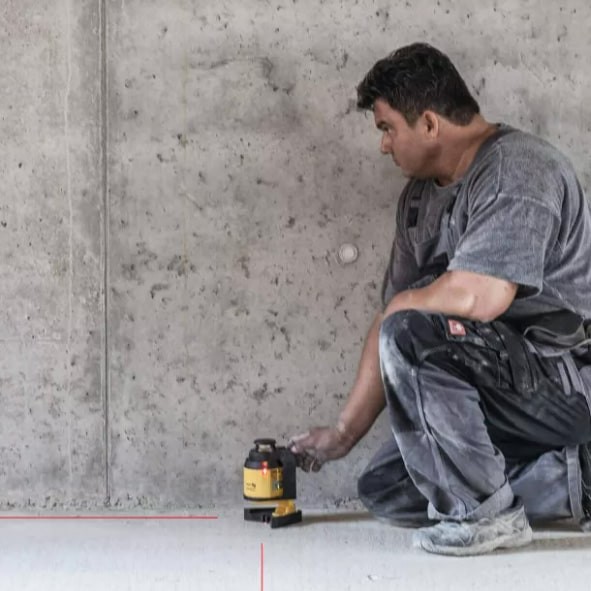

The Stabila LAX 400 Multi-Line Laser rotates horizontally through 360° for line marking and levelling around an entire room. It has a manual alignment function, where two lines form a 90° angle. With fine adjustment, the laser lines can be pivoted to a target position without losing the position of the plumb-line dot.

Product advantages

• Self-levelling multi-line laser with full 360° horizontal line for transferring heights, two vertical lines at a 90° angle to one another and a plumb line upwards and downwards for exact layout work.
• MANUAL ALIGNMENT: accurate pivoting of the vertical laser lines to a target point using the knob – the laser rotates through the plumb-line dot without losing its position.
• Precise work directly on the bright, fine laser lines at distances of up to 20 m.

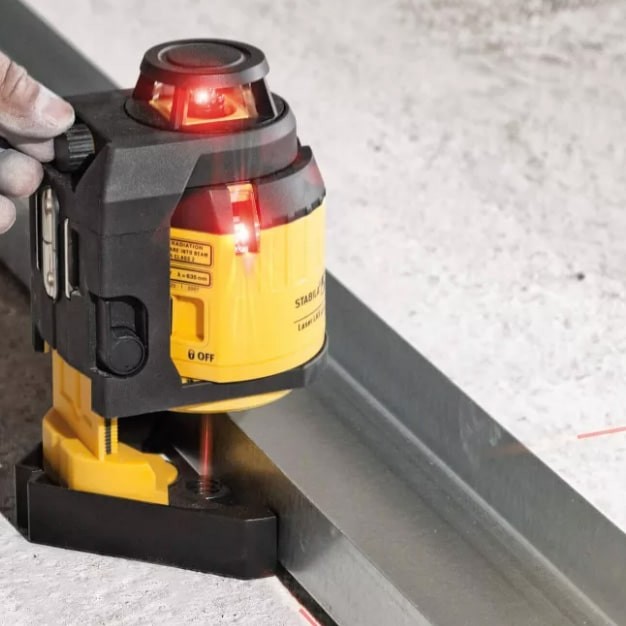

• Rotatable housing with extendable foot for height adjustment for working directly on U-profiles.
• Pulse-modulated laser lines for working with an optional line receiver.
• Quick self-levelling function thanks to pendulum technology.
• Easy to change functions using single-button operation.
• Versatile use: can be used on the floor, on a tripod (5/8“ thread) or attached to metallic objects.
• Shock-absorbent STABILA soft grip casing.
• Stable aluminium housing top.

The laser has a vertical beam which is directed downwards and is clearly visible through the adjustable feet. Above, the two vertical lines intersect precisely over the plumb line dot. The LAX400 is ideal for transferring a layout from floor to the ceiling and for quick and accurate plumb bobbing. It has a shock-absorbent soft-grip case.

Application examples

• For a wide range of tasks in drywall construction – for layout work, when positioning partition walls and suspending ceilings.
• Transfer heights quickly and easily in electrical installation work – align plug sockets, switches and cable ducts horizontally and vertically with one another.
• For tiling work – when marking out the tile layout and when aligning and laying the tiles.
• Precise transfer of marking points during plumbing work – align pipe clips vertically and horizontally with one another quick positioning and installation of lines and heating pipes.
• Transfer heights reliably for joinery – transfer drill holes accurately and align worktops quickly align furniture and cabinets precisely to one another and install them.

Specification

Level Accuracy:± 0.3 mm/m.
Self-Levelling Range:± 4.0°.
Working Range: 20m.
Power: 4 x AA batteries (supplied).
Average Battery Life: 10 Hours.
Tripod Thread: 1/4in.
Laser Class: 2.
Line Straightness:± 0.2mm/m, 90° Angle Precision:±0.3mm/m.
Protection Class: IP54 rated, against splash & dust damage.
