Stabila STBLAX300 LAX 300 Self-Levelling Cross Line Laser

Product Overview:

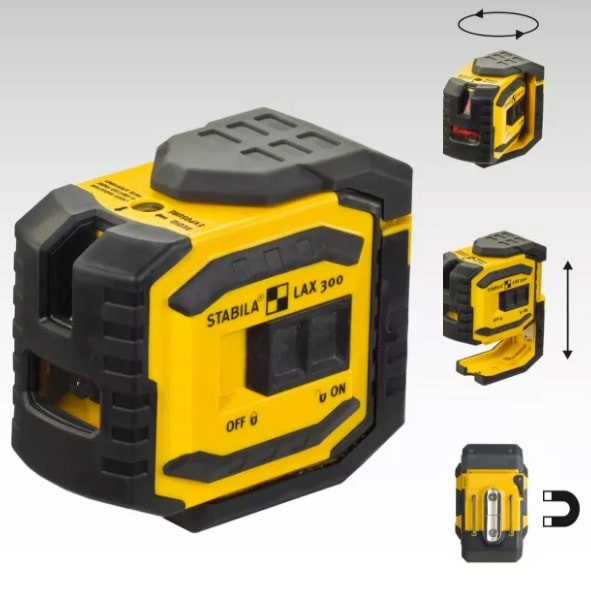

Be more efficient and productive with the levelling and alignment features of the LAX 300. You can level and plumb, the floor, walls and ceiling with one setup. This makes life so much easier during construction and renovation. The LAX 300 is built tough and accurate so that you're assured the laser will stay precise even under harsh working conditions. This makes the LAX 300 an all-in-one solution for a whole range of applications.

The Stabila LAX 300 Cross Line Laser Level is ideal for marking out floors, walls and ceilings. It has 3 functions and a visible line range of 20m with a red laser diode. Has 3 lines: one horizontal line, one upwards vertical line, and one downwards plumb-line make the laser well suited for the transfer of the layout from floor to roof. The laser also allows quick and precise plumbing.

Product advantages

• Self-levelling cross line plus plumb point laser for working directly on the laser lines.
• 1 horizontal line, 1 vertical line, plumb-line dots upwards and downwards – visible up to 20 m.
• The vertical line almost covers the entire room.
• Plumb-line dots for transferring the layout from the floor to the ceiling.
• Quick self-levelling function thanks to pendulum technology designed for the construction site.
• Easy to change functions using single-button operation.
• Compact, rotatable housing with extendable foot for height adjustment for working directly on U-profiles.
• Versatile use: can be used on the floor, on a tripod (1/4“ thread), with the rare-earth magnets on metallic objects or on the wall bracket.
• Shock-absorbent STABILA soft grip casing.
• Pulse-modulated laser lines for working with an optional line receiver.
• Protection class IP 54.
• Belt pouch.

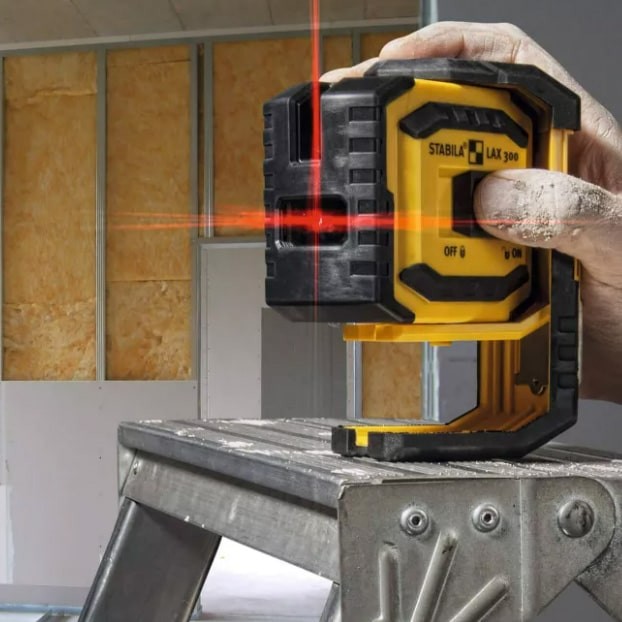

A very bright, narrow and clear laser line is visible up to 20m. The laser can be rotated through 360° in its housing and can be used directly on the floor, attached to a tripod (1/4in thread), fastened to metallic objects by its rare earth magnet and V-groove or secured by the metal lugs using a strap.

Application examples

• In drywall construction – suspending ceilings, positioning interior and partition walls.
• In electrical installation work – installation of cable ducts.

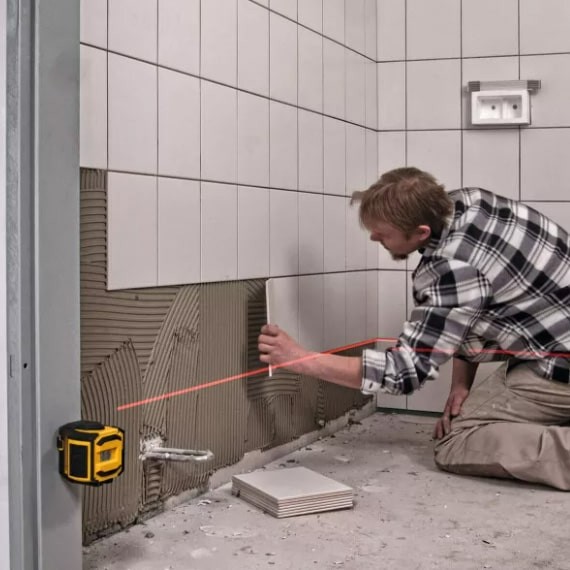

• For tiling work – marking out the tile layout.
• In window fitting – for levelling the window height.
• For joinery – construction of kitchen cupboards, aligning the worktops.

The laser level has a shock-absorbent STABILA soft-grip casing, providing high protection (class IP 54). There is optimal protection of the optical equipment against dust and scratches by rotation inside the U-shaped housing.

Thanks to the pulsed laser lines, the LAX 300 can be used both inside and out.

Specification

Level Accuracy:± 0.3 mm/m.
Self-Levelling Range:±4.5°.
Working Range: 20m.
Power: 3 x AA batteries (supplied).
Average Battery Life: 20 Hours.
Tripod Thread: 1/4in.
Laser Class: 2.
Line Straightness:± 0.2mm/m.
Protection Class: IP54 rated, against splash & dust damage.
