Stabila STBLAR350 LAR 350 Rotation Laser

Product Overview:

Need a tough rotation laser that covers all measuring tasks and allows you to work at large distances? Reliable and easy to use, the LAR 350 can handle both horizontal and vertical alignment as well as 2-axis inclinations. The intuitive MOTION CONTROL feature and LED ASSIST system help you work quickly and effectively. Thanks to the integrated protection systems, nothing can stop this German-made performance laser from doing its job – even if it is dropped or exposed to rain or dust. Typically STABILA – because lasting precision is the crucial factor

The Stabila LAR 350 Rotation Laser is a fully automatic motor-driven rotation laser for horizontal and vertical applications as well as manual inclination in two axes. With innovative motion control for quick, reliable and convenient laser operation via the supplied remote control. It has several useful functions, including:

Product advantages

• Fully automatic, motor-driven rotation laser for horizontal and vertical applications as well as manual inclination in two axes.

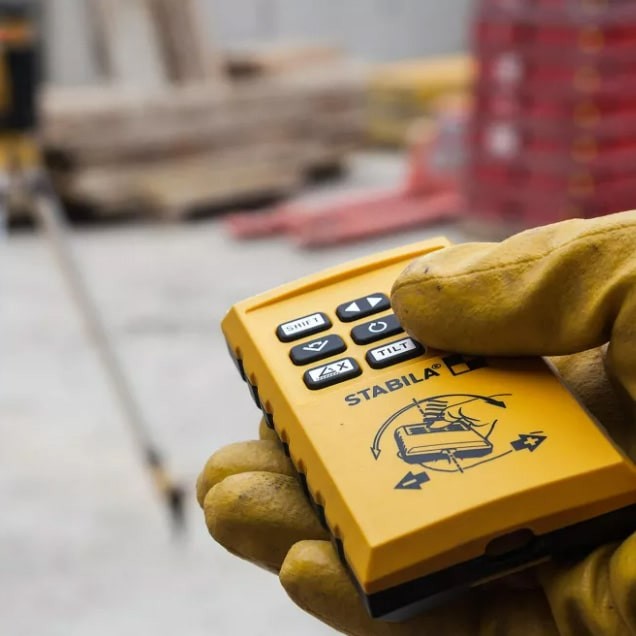

• Innovative MOTION CONTROL – quick, reliable and convenient laser operation by rotating the remote control.
• DUAL SLOPE inclination function – inclination setting of up to 5° on two axes.
• SCAN function for working directly on the visible laser line.
• SECTION MODE – working area which can be limited as required in rotation mode. The laser beam is only emitted in a defined area.
• LED ASSIST system – for easy operation and safety in the workplace. Integrated LEDs indicate, for example, which axis is currently tilted or is being tilted.
• MANUAL ALIGNMENT function – pivoting an axis in vertical operation.
• Patented STABILA PROTECTOR system – perfect protection, even when the laser is dropped from a tripod at a height of up to 1.80 m.
• Waterproof and dustproof in accordance with protection class IP 65.
• Working area with a diameter of up to 800 m.

Dual slope inclination function allows for controlled inclination setting of up to 5° on two axes.

Application examples

• In bricklaying – creating the levelling layer.
• In reinforced concrete construction –concreting foundations or constructing batter boards.
• In metal construction – aligning and positioning steel beams in industrial building construction.
• In gardening and landscaping work – laying out garden areas, paths and paving.
• In carpentry and wood construction – attaching façade cladding.
• In civil engineering and pipeline construction – installing pipelines.

Section mode enables you to set up a working area, meaning that the laser beam is only emitted in a defined area.

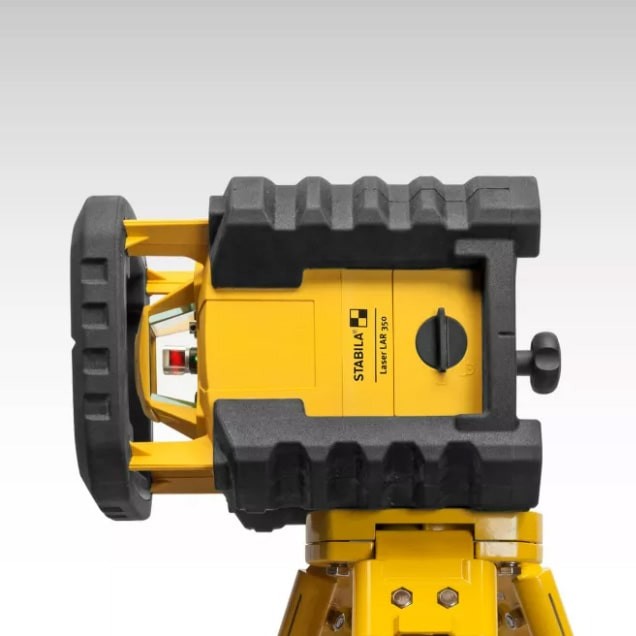

Manual alignment function provides a pivoting axis in vertical operation.

The integrated LED assist system allows for easy operation and safety in the workplace. It alerts the user at various points, for example, which axis is currently tilted or is being tilted.

The body of the laser is IP65 rated, waterproof and dustproof. It also incorporates the patented STABILA PROTECTOR system, offers the maximum protection, even when the laser is dropped from a tripod at a height of up to 1.80m.

Supplied with the Stabila REC300 Receiver which has two displays: one each on the front and back with digital display of the reference deviation in mm, inches in (fractions) and ft. Allowing you to read the deviation from the reference height directly. Acoustic guidance with selectable volume and a series of symbols, will indicate your distance from the reference height and whether you are too high or low. Its loud signal can be heard even with a loud background noise.

Also supplied with: 1 x RC-LAR 350 Remote Control, 1 x 90° Angle Rail, 1 x Pair of Laser Goggles, 1 x Target Plate, 2 x 1.5V D Cell Batteries, 4 x 1.5V AA Batteries.

Specification:

Levelling Accuracy: ±0.10mm/m
Range: 800m
Self-Levelling Range: ± 5°
Laser Class: 2
Operating Life: 80 hours
Power: 2 x 1.5V D Cell batteries (supplied)
Protection Class: IP65
Tripod Connection: 5/8in
