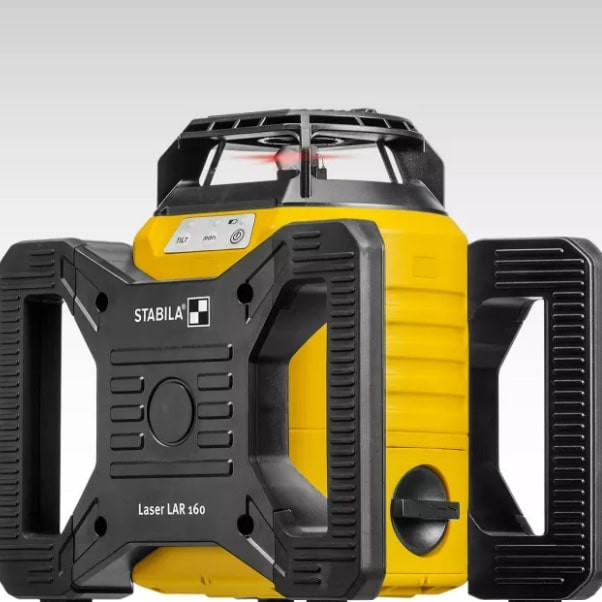

Stabila STBLAR160TS LAR 160 Rotation Laser Set, 7 Piece

Product Overview:

Are you tasked with horizontal and vertical levelling for major outdoor projects? Do you need to work precisely and avoid costly measurement errors and rework? Then the LAR 160 from STABILA is the right rotation laser for you. It is quick to set up, easy to operate and also suitable for use over large distances when linked to a receiver. All in all, it is a high-quality product that can endure the elements and deliver precise results – exactly what you need.

The Stabila LAR 160 Rotation Laser has a high levelling accuracy of ± 0.1mm/m, fast self-levelling within 20 seconds. Fully automatic with four laser functions: horizontal and vertical rotation, plumb line function and right angle (90°) in vertical operation. Easy to use, via three control buttons: on/off, tilt mode and manual mode.

Product advantages

• Fully automatic, motor-driven rotation laser – high levelling accuracy of ± 0.1 mm/m, fast self-levelling function within 20 seconds.
• Four laser functions for versatile use – horizontal and vertical rotation, plumb-line function and right angle (90°) in vertical operation.

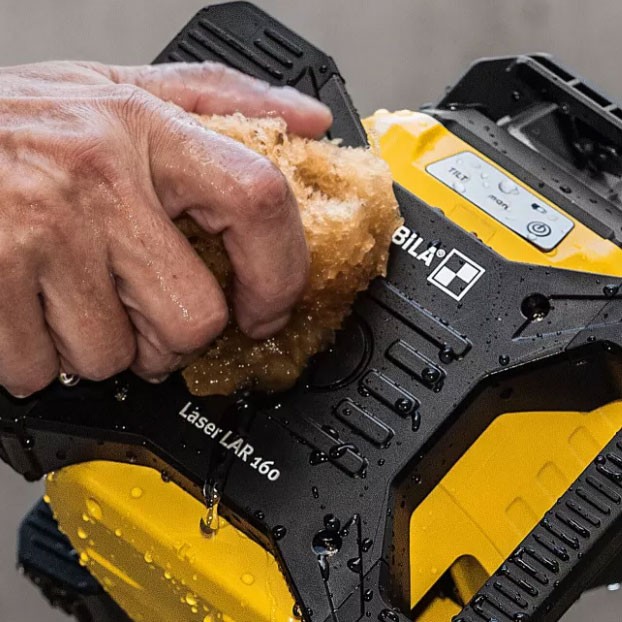

• Protection class IP 65 – dustproof and waterproof.
• Shock-absorbent STABILA soft grip casing provides protection against impacts – the stable housing cover also protects the laser optics.
• Easy to use via three control buttons – on/off, tilt mode, manual mode.
• Battery drawer – easy replacement, even directly on the tripod.
• Large working area with REC 160 RG set receiver – up to 600 m in diameter.
• Two 5/8" threads integrated in the housing for horizontal and vertical use on a tripod.
• Target plate with magnetic holder and cross-hair.
• Laser goggles – increase visibility of the laser beam by 50%.
• Stable carrying case for easy transport and safe storage.

Covered with a shock-absorbent soft grip casing that provides protection against impacts whilst the stable housing cover protects the laser optics. Dustproof and waterproof to IP65. With two integrated 5/8in threads in the housing, for horizontal and vertical tripod use.

Application examples

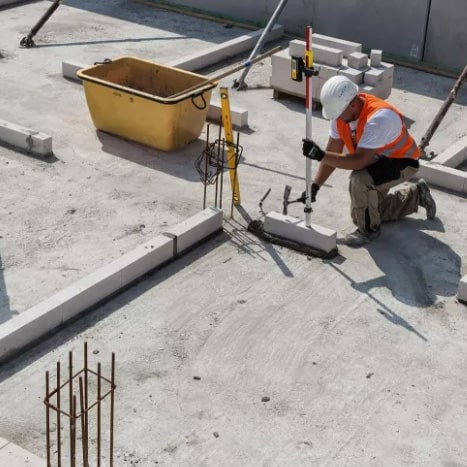

• In bricklaying – creating the levelling layer.
• In reinforced concrete construction – concreting foundations or constructing batter boards.
• In metal construction – aligning and positioning steel beams in industrial building construction.
• In gardening and landscaping work – laying out garden areas, paths and paving.
• In carpentry and wood construction – attaching façade cladding.
• In civil engineering and pipeline construction – installing pipelines.

Supplied with: 1 x BST-S Construction Tripod, 1 x NL Levelling Rod, 1 x REC 160 RG Receiver, 1 x Laser Goggles, 1 x Target Plate, 2 x D 1.5V Batteries, 2 x AA 1.5V Batteries and 1 x Carrying Case.

Specification:

Laser Type: Red
Accuracy: ± 0.1mm/m
Diameter of Working Area with Set Receiver: Ø600m
Laser Class: 2
Laser Wave Length: 635nm
IP Rating: IP65
