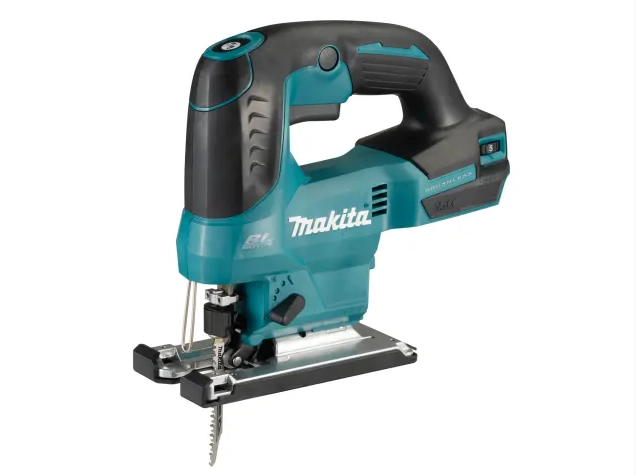

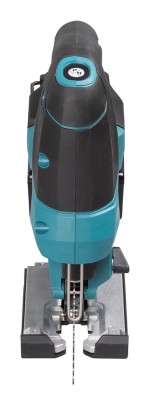

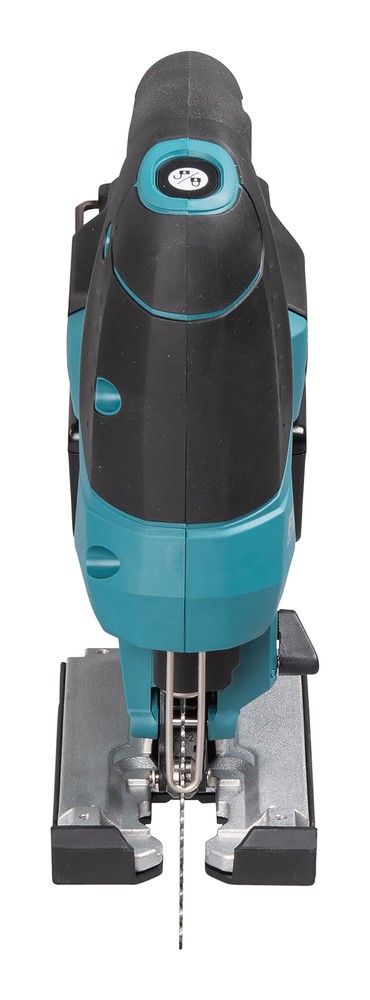

Makita DJV184Z LXT Cordless Brushless Top Handle Jigsaw 18v Body Only

Overview:

Efficient brushless jigsaw with tool-less blade change. MAKDJV184Z DJV184Z LXT Brushless Jigsaw 18V Bare Unit

An efficient saw with 3 Orbital Settings Plus Straight Cutting and tool-less blade change. Engine speed can be adjusted between 0 and 3 000 min⁻¹ from a dial to suit the material. A stroke length of 23 mm and cutting capacity of 135 mm in wood and 10 mm in steel.

The Makita DJV184 LXT Brushless Jigsaw offers high cutting performance thanks to its orbital cutting function: 3 orbital settings + straight cutting.

User Benefits:

• Brushless maintenance-free and long-life motor
  LED light illuminates the work site
  Soft no load function automatically reduces the motor speed during idling to suppress the vibration
  Compact and lightweight for reduced operator fatigue

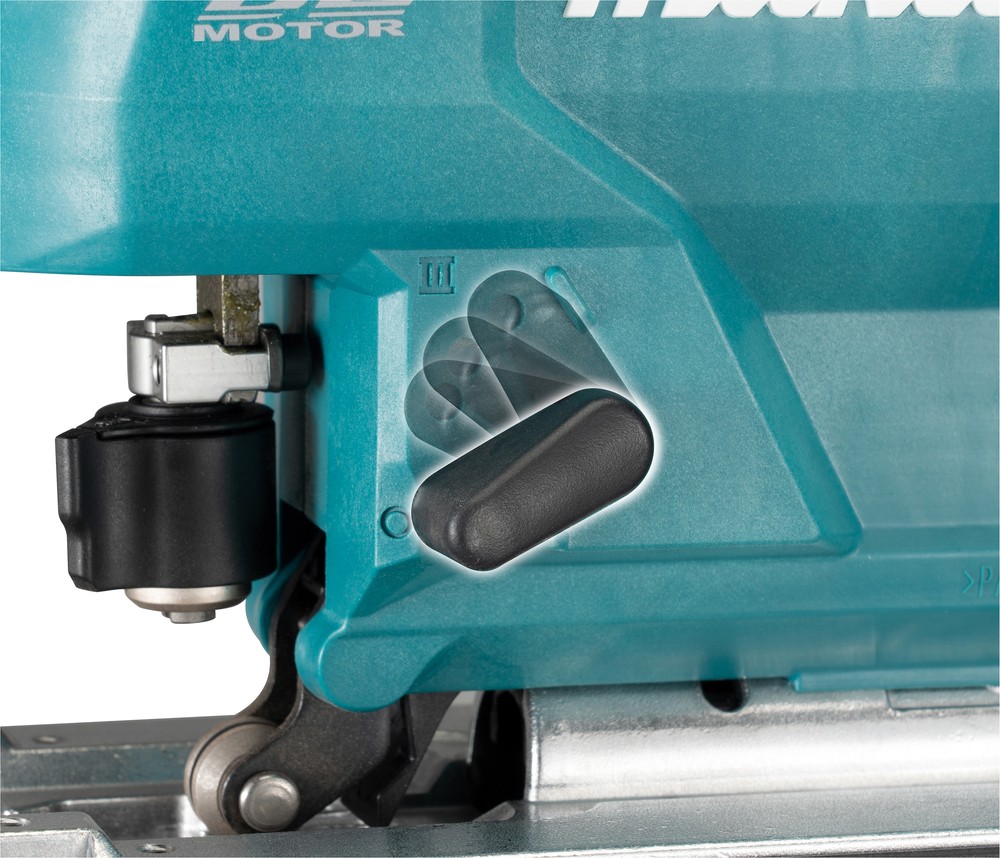

  3 orbital settings

A 'soft no load' function automatically reduces the motor speed during idling to suppress the vibration of the machine body.

Its compact, lightweight design makes it easy to handle and helps to reduce fatigue.

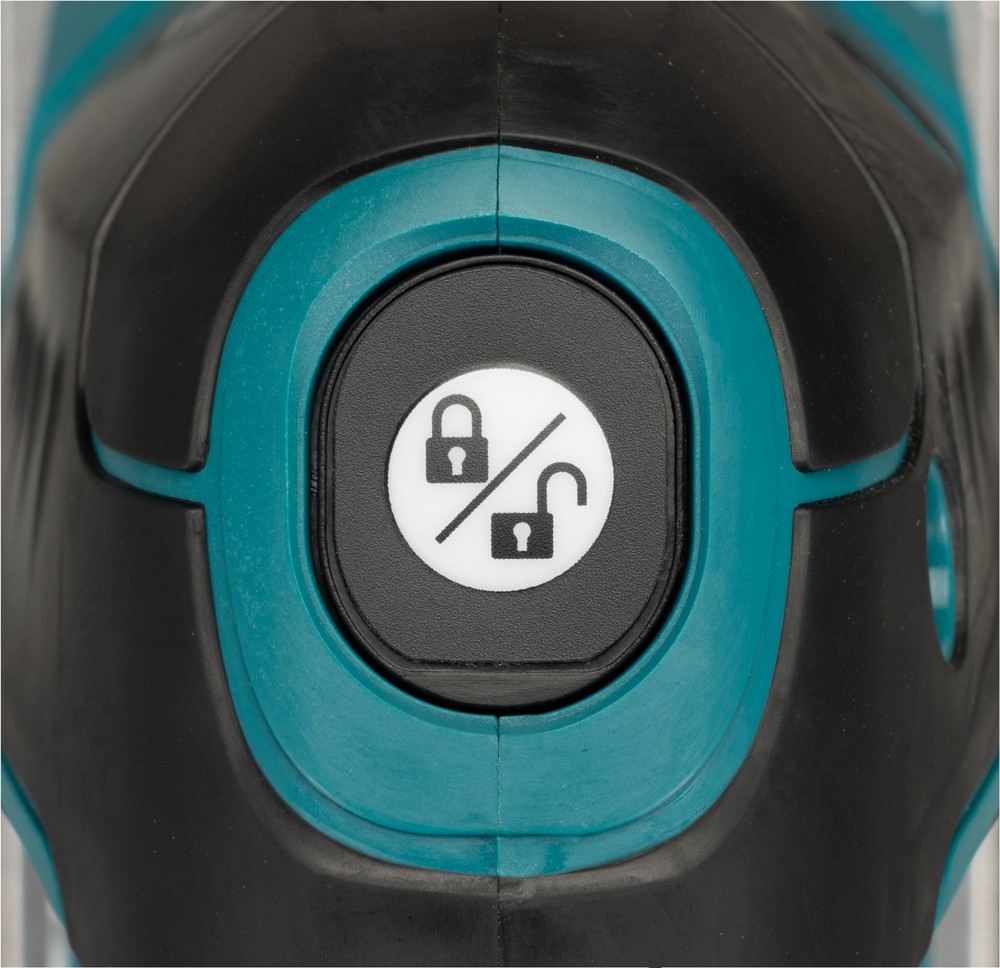

For added safety there is an electric brake and anti-restart function.

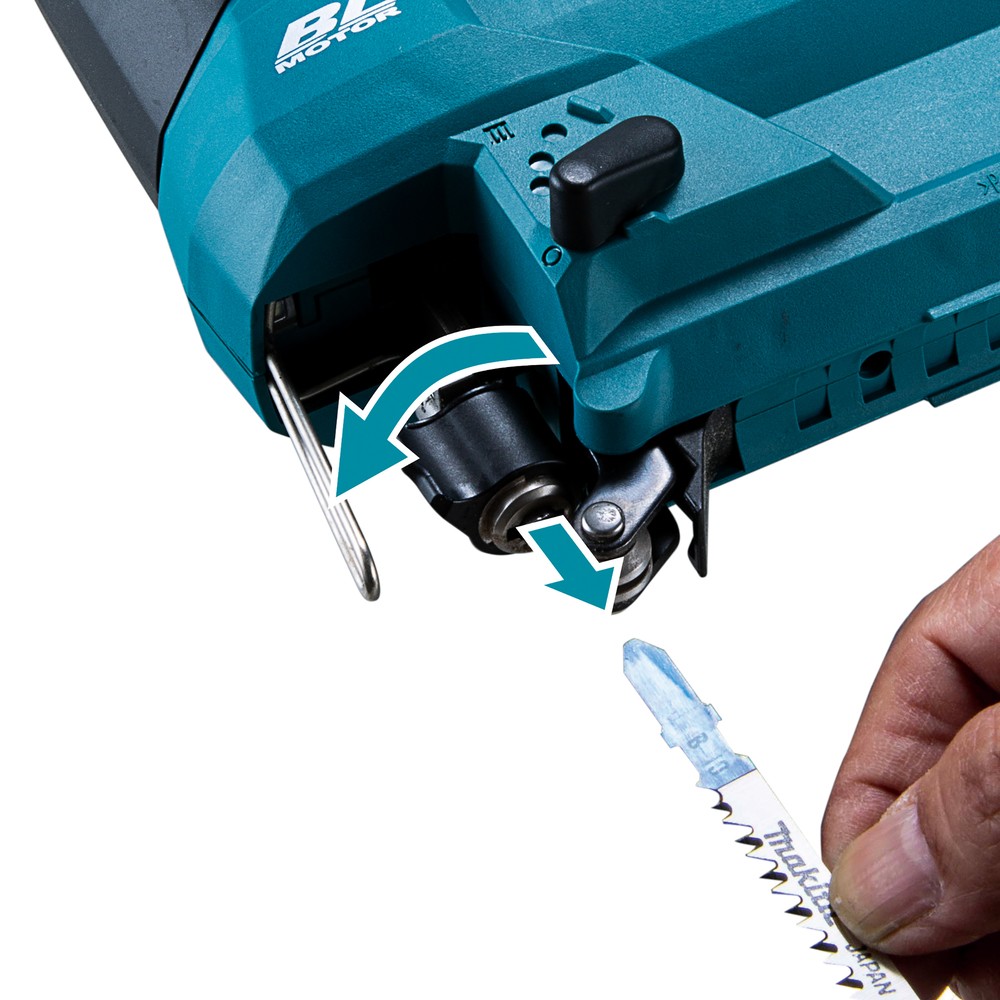

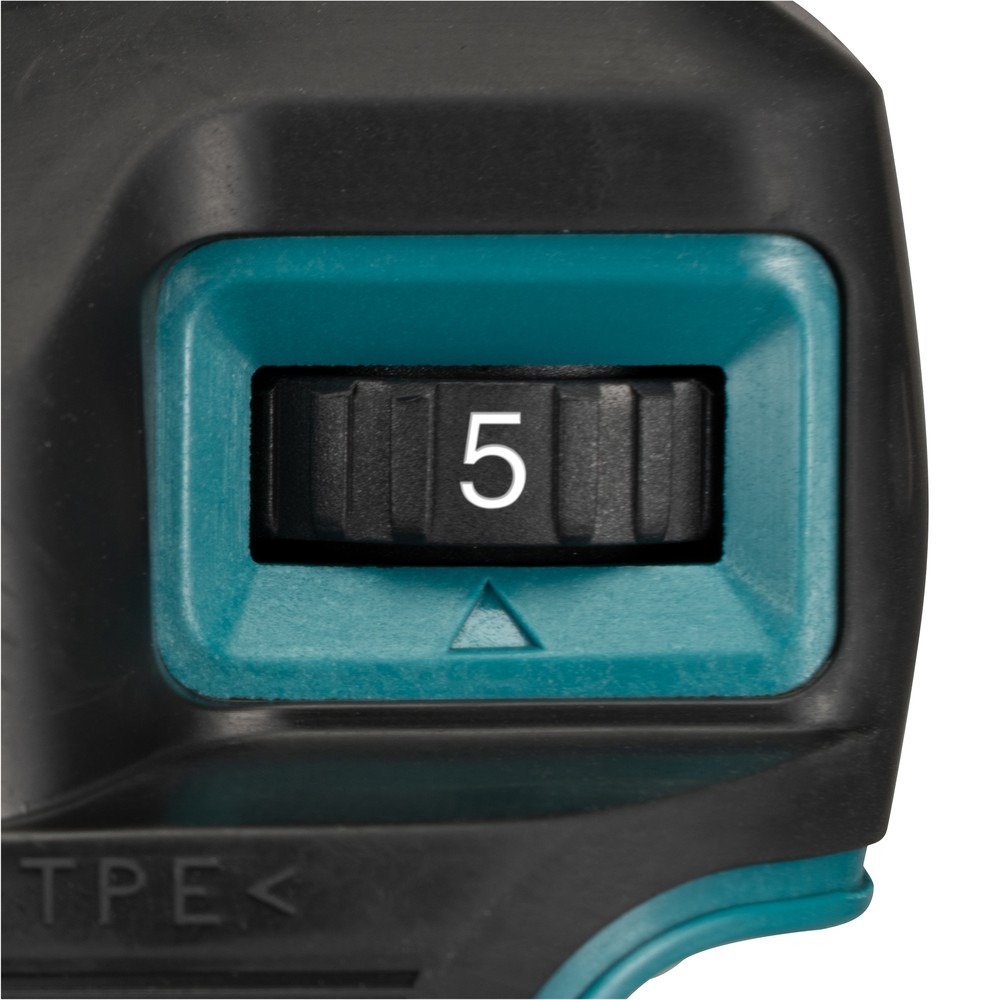

Other features include; a tool-less blade clamp for easy blade change with one hand, variable speed control and an LED with light up function during standby mode.

Technical specifications:

• Nominal Battery Voltage - 18 V
• Strokes per Minute (SPM) - 0 - 3000 min⁻¹
• Length of Stroke - 23 mm
• Max. Cutting Capacity in Wood (90°) - 135 mm
• Max. Cutting Capacity in Steel (90°) - 10 mm
• Capacity Aluminium - 20 mm
• Tool weight with battery - 2,1 - 2,4 kg
• Product Dimensions (L x W x H): 259 x 77 x 205 mm
• Max Output Power - 400 W
• Max. Bevel Range (Left) - 45 º
• Product net weight - 1,7 kg
• Vacuum cleaner connection Ø in / out - 23/28 mm
• Vibration Level, Cutting Boards - 7,4 m/s²
• Vibration Uncertainty (K Factor), Cutting Boards - 1,5 m/s²
• Vibration Level, Cutting Sheet Metal - 5,1 m/s²
• Vibration Uncertainty (K Factor), Cutting Sheet Metal - 1,5 m/s²
• Sound Power Level (LWA) - 93 dB(A)
• Sound Pressure Level (LpA) - 82 dB(A)
• Noise Uncertainty (K Factor) - 3 dB(A)
