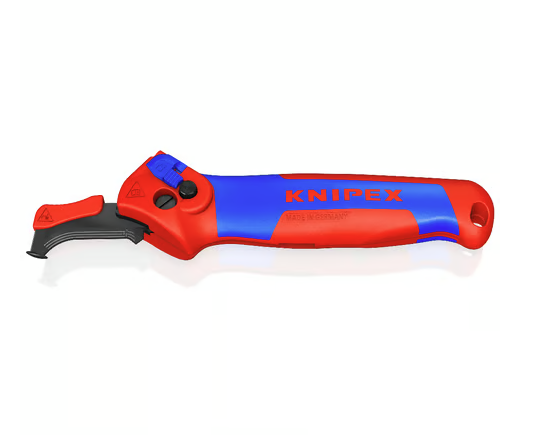

Knipex 1650145 SB Cable Stripping Knife With Ratchet Function

Product Overview:

• Ratchet function: easy cutting even for a variety of cable sheaths
  Versatile blade with three cutting areas for round and lengthwise cuts
  Guide shoe protects the conductor insulation under the cable sheath
  Cuts very hard or tough plastic sheaths up to 7 mm wall thickness
  Sickle-shaped, replaceable hook blade can be folded for safe transport
  Blade with four positions: folded, straight, angled and ratcheting
  Three-stage blade lock for safe handling and transport
  Ergonomically designed, comfortable handle
  Integrated tether attachment point for use with KNIPEX Tethered Tool System

1. Transport position - The blade can be completely folded away for transport.

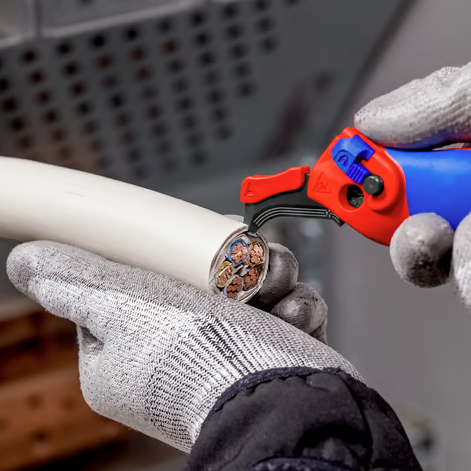

2. Cutting position for round cut - The raised blade area near the handle cuts easily around thicker sheaths and the scale helps to control the cutting depth.

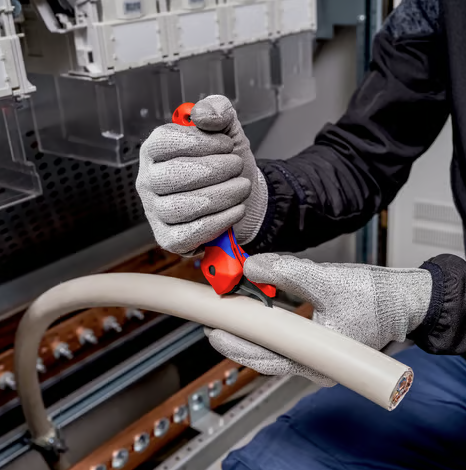

3. Cutting position for round and lengthwise cut - When aligned straight, the blade can be used for circumferential and longitudinal cutting, the latter by pulling or pushing.

4. Cutting position for lengthwise cut with ratchet - In this position, the blade is movable and cuts even particularly thick or tough cable sheaths very easily thanks to the ratchet function

Three-stage blade loc - With safety lock, slider and push-button

Tether attachment point - can be used with KNIPEX Tethered Tools System
