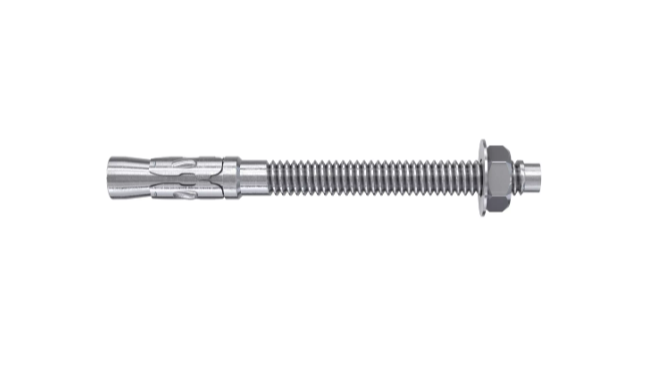

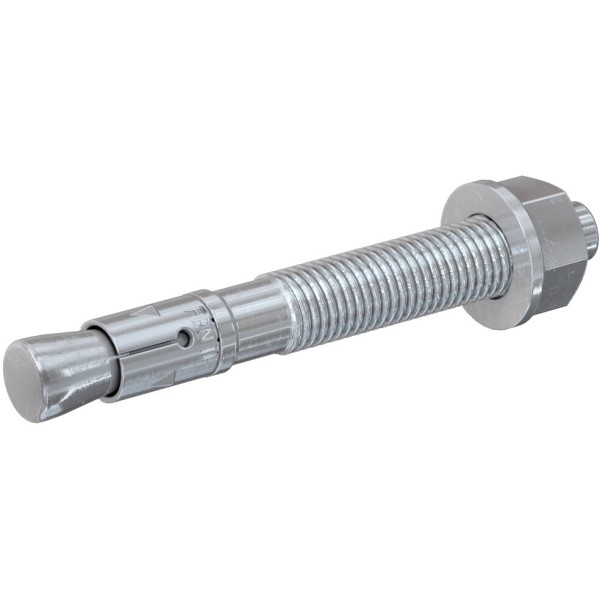

Fischer FWA Through Bolts Anchors M16 Hot Dipped Galv

Product Overview:

The fischer bolt anchor FWA M16 HDG is an economical solution for all applications where an approved fixation is not required. The FWA is offered in zinc-plated steel and hot-dip galvanised steel with an imperial thread. The bolt anchor can be used with two anchorage depths. The standard anchorage depth guarantees a high load-bearing capacity. This means that fewer fixing points and smaller anchor plates are required. The reduced anchorage depth reduces the drill hole depth. This saves time during the installation and increases flexibility.

Items in Range:

• 45798 - M16 x 140mm
• 45799 - M16 x 180mm

Key Features:

• The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
• The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility

Applications:

• Steel Constructions
• Guard Rails
• Consoles
• Ladders
• Cable Trays
• Machines
• Staircases
• Gates
• Facades

Functionality:

• The FWA is suitable for pre-positioned and push-through installation.
• Prior to installation, place the hex nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hex nut).

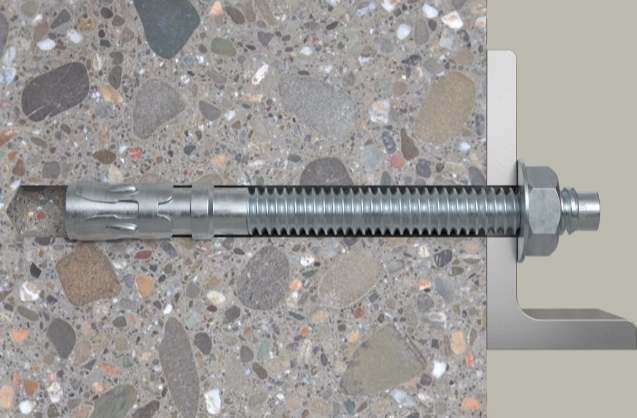

• When the torque is applied, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
