Fischer FBN II Through Bolt Anchors M6 BZP

Product Overview:

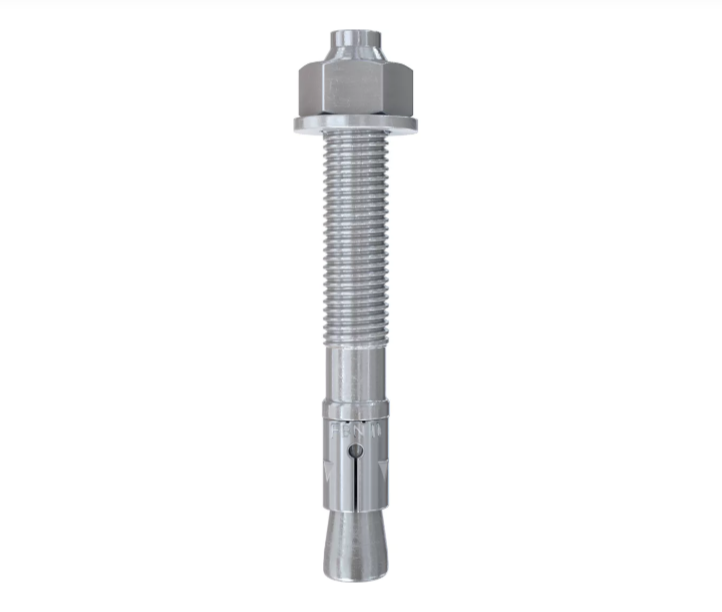

The Fischer bolt anchor Throughbolts FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread, the Fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.

Items in Range:

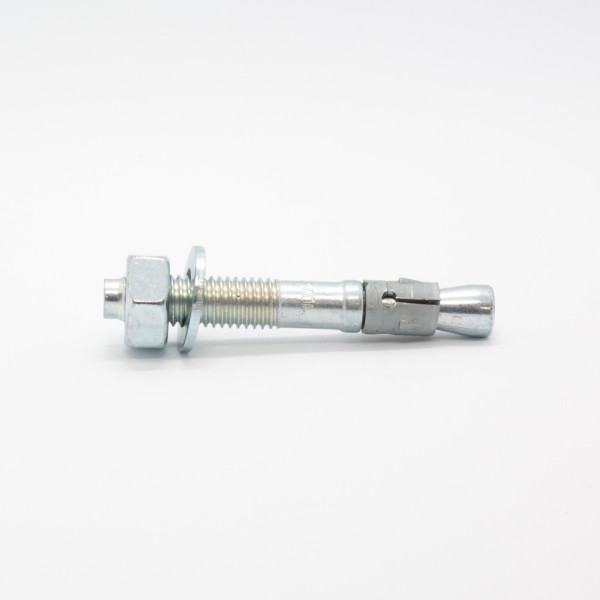

• 505526 - M6 x 50mm 6/5
• 505527 - M6 x 55mm 6/10
• 505528 - M6 x 75mm 6/30

Key features:

• The FBN II achieves maximum load-bearing capacity with standard anchorage depth. This means: fewer fixing points and smaller anchor plates.
• If the reduced anchorage depth is used, then this lowers the drill hole depth and simplifies installation.
• The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
• The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
• Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
• Simple assembly due to few taps and minimal slippage.
• The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

Applications:

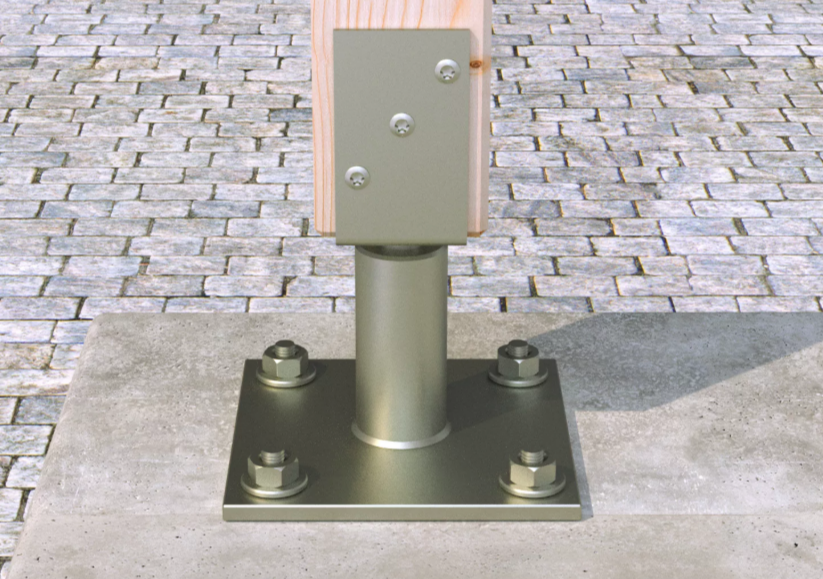

• Steel Constructions
• Guard Rails
• Consoles
• Ladders
• Machines
• Gates
• Facades

Functionality:

• The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
• Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).

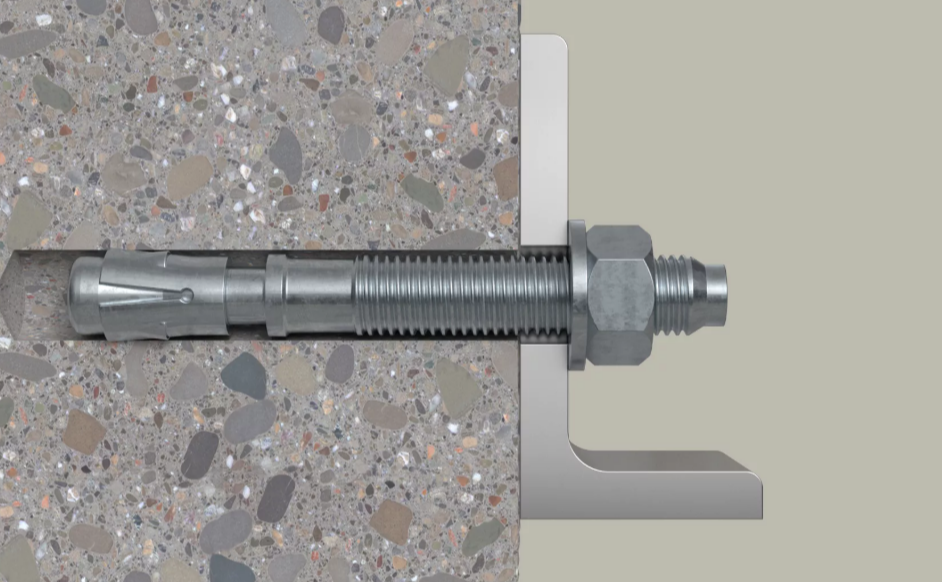

• When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
• The head embossing offers a simple control of the anchoring.
• In the case of series installation, we recommend using the FABS bolt anchor setting tool.
