Fischer FBN II Though Bolt Anchors M16 Electro Zinc Plated

Product Overview:

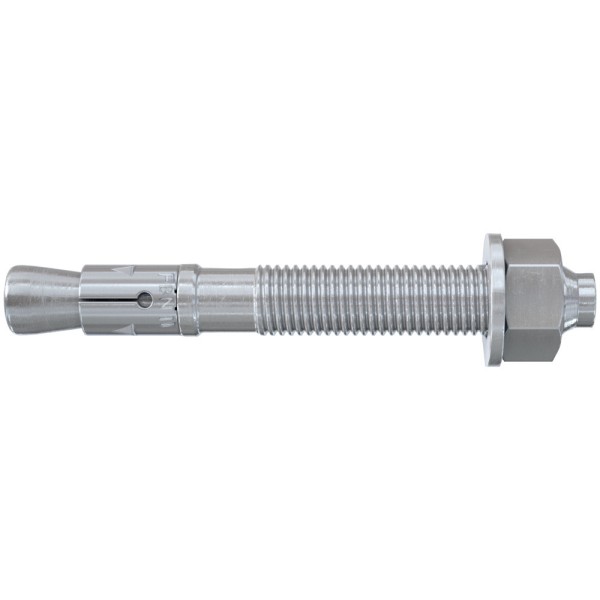

The fischer bolt anchor FBN II M16 is a zinc plated steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.

Items in Range:

• 45572 M16 x 130mm 16/25 K
• 45566 M16 x 200mm 16/80
• 45568 M16 x 260mm 16/140
• 45569 M16 x 280mm 16/160
• 45570 M16 x 320mm 16/200

Key Features:

• Component tolerances are balanced out with the long thread.
• Simple assembly due to few taps and minimal slippage.
• The drive-in pin protects the thread from damage. Saving time during installation and removal.

Advantages:

• The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
• The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
• The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
• Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
• The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

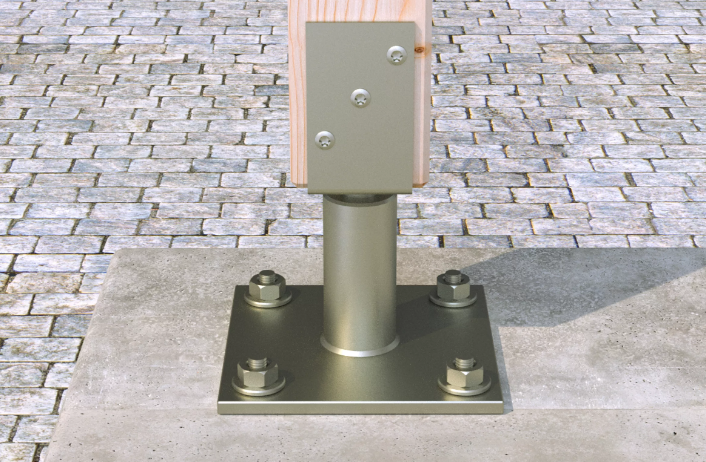

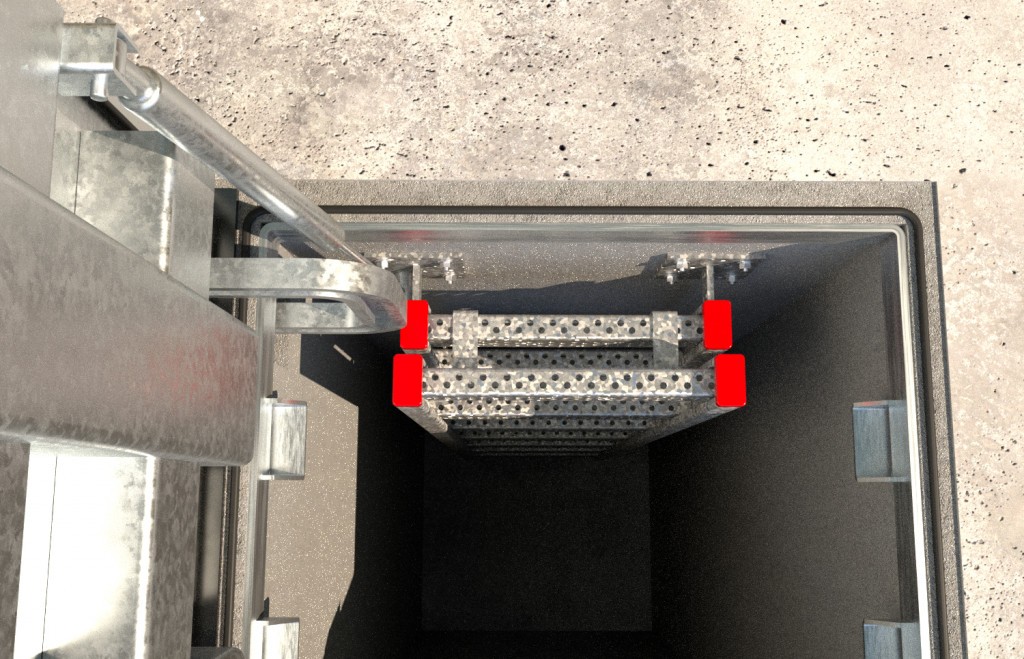

Applications:

• Steel Constructions
• Guard Rails
• Consoles
• Ladders
• Machines
• Gates
• Facades

Functionality:

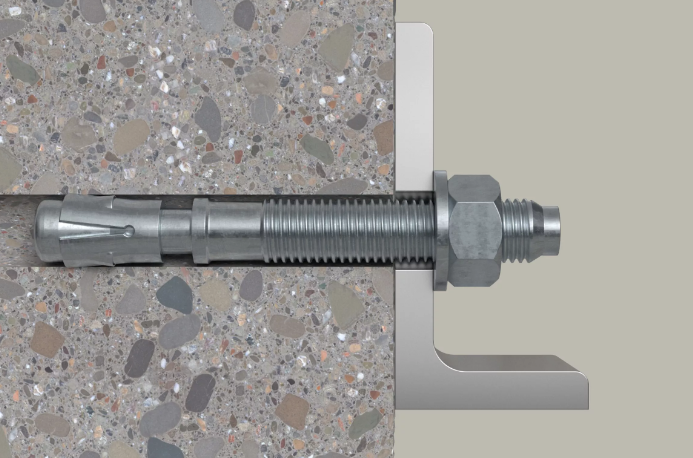

• The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
• Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
• When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
• The head embossing offers a simple control of the anchoring.
• In the case of series installation, we recommend using the FABS bolt anchor setting tool.
