Fischer FBN II K Through Bolt Anchors Hot Dipped Galv

Overview:

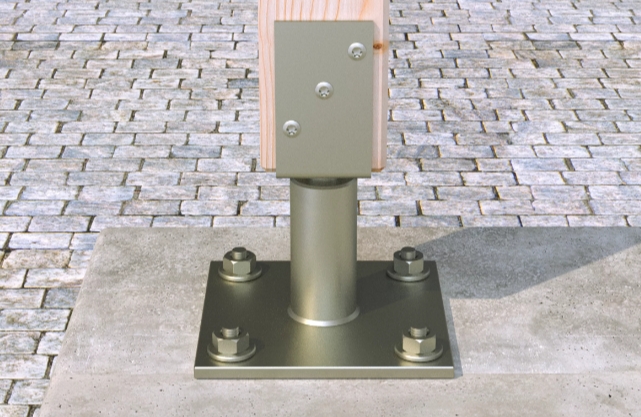

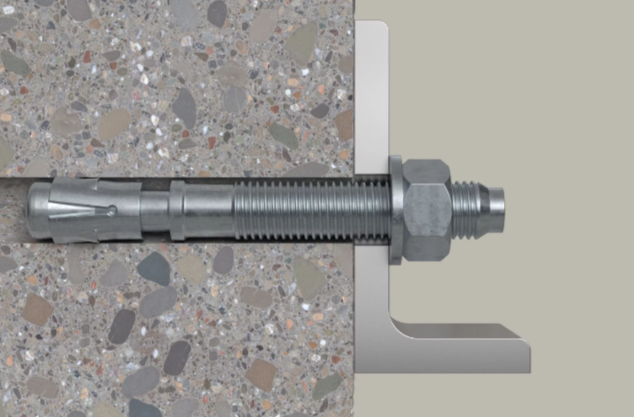

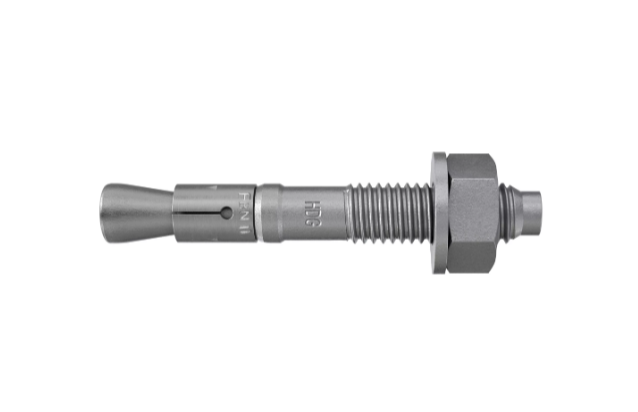

The fischer bolt anchor FBN II K M8 is a steel anchor for cost-effective fixings in non-cracked concrete. The short version is suitable for pre-positioned installation and push-through installation. The bolt anchor is made of hot-dipped steel and is recommended for railings, handrails or consoles.

Items in Range:

• 508012 - M8 x 55mm 8/5
• 508013 - M10 x 70mm 10/5
• 508014 - M12 x 85mm 12/5
• 507597 - M16 x 120mm 16/15
•

Key Features:

• With assessment document (ETA) the hot dipped galvanised steel version is covered for external use with variable working life depending on environment and corrosion conditions.
• The FBN II achieves maximum load-bearing capacity with standard anchorage depth. This means: fewer fixing points and smaller anchor plates.
• If the reduced anchorage depth is used, then this lowers the drill hole depth and simplifies installation.
• Component tolerances are balanced out with the long thread. In addition, the FBNII HDG is also suitable for stand-off installations. This increases flexibiltiy.
• Simple assembly due to few taps and minimal slippage.

Advantages:

• The standard anchorage depth achieves the maximum load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
• The first bolt anchor with variable working life covers the usage of bolt anchors in wet conditions and outdoor areas.
• Fewer hammer blows and the minimal torque slippage allow for a noticeably simpler assembly.
• The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
• The long thread balances component tolerances and stand-off installations, and thus increases flexibility.
• The drive-in pin protects the threaded screw from damage, and as such ensures a faster installation and dismantling of the fixture.

Applications:

• Steel Constructions
• Guard Rails
• Consoles
• Ladders
• Machines
  Gates
• Facades
