Fischer FBN II K R Through Bolt Anchors A4 Stainless Steel

Product Overview:

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The stainless steel version of the bolt anchor is suitable for fixing façade sub-structures, consoles, and ladders in external areas.

Items in Range:

• 508007 - M8 x 56mm 8/5K R
• 508010 - M10 x 70mm 10/5K R

Key Features:

• The FBN II achieves maximum load-bearing capacity with standard anchorage depth. This means: fewer fixing points and smaller anchor plates.
• Maximum load-bearing capacity in non-cracked concrete. This means fewer fixing points and smaller anchor plates.
• Component Tolerances are balances out with the long thread. In Addition, the FBN II K R is also suitable for stand off installations. This increases flexibility
• If the reduced anchorage depth is used, then this lowers the drill hole depth and simplifies installation.
• Simple Assembly due to few taps and minimal slippage
  Stainless steel: permanent safety in outdoor use.
• Simple assembly due to few taps and minimal slippage.
• The drive-in pin protects the thread from damage.
• Made from stainless steel, suitable for outdoor use.

Advantages:

• The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
• The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

Applications:

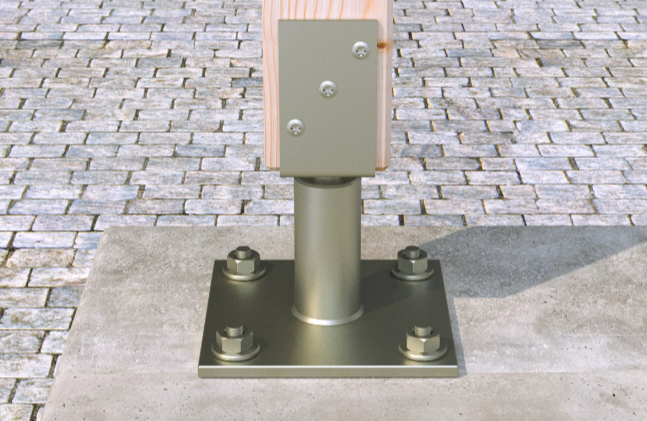

• Steel Constructions
• Guard Rails
• Consoles
• Ladders
• Machines
• Gates
• Facades

Functionality:

• The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
• Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).

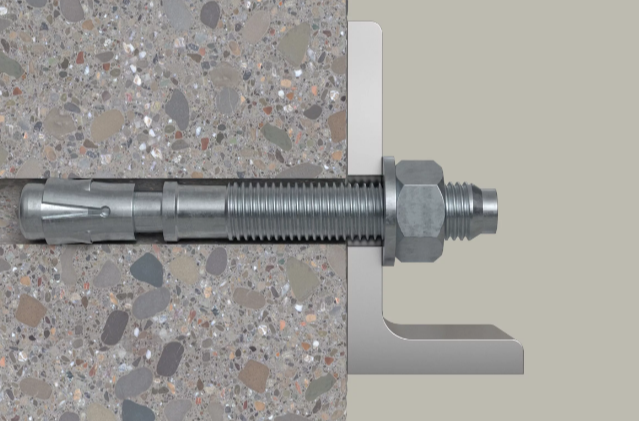

• When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
• The head embossing offers a simple control of the anchoring.
• In the case of series installation, we recommend using the FABS bolt anchor setting tool.
