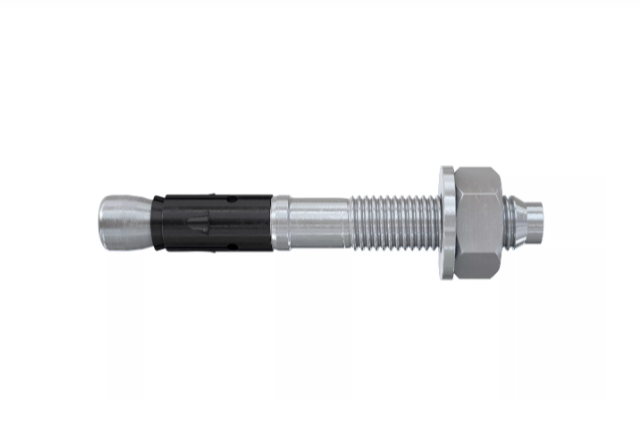

Fischer FAZ II Plus Through Bolt Anchors M6 BZP

Overview:

The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor.

Items in Range:

• 564572 - M6 x 65mm 6/10
• 564573 - M6 x 75mm 6/20

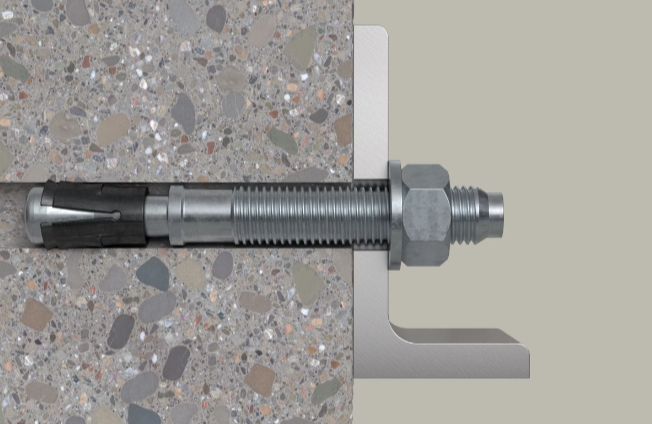

The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24). The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.

Top Features:

• Quick and easy assembly without the need for drill hole cleaning (M8-M24).
• Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs.
• Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD.
• Millimeter accurate adjustment to the loads due to the variable anchoring depths
• Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
• The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.

Applications:

• Steel constructions

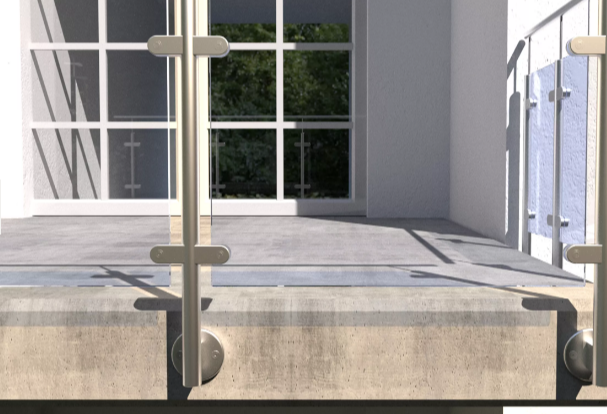

• Guard rails
• Consoles
• Ladders
• Cable trays
• Machines
• Staircases
• Façades
• Timber constructions
•
