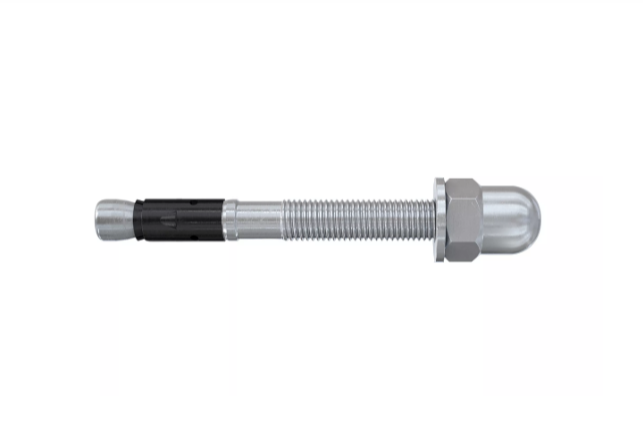

Fischer FAZ II Plus H Through Bolt Anchors ZP Cap Nut

Overview:

The fischer bolt anchor FAZ II Plus H is the steel anchor for highest demands. The new sizes of the special cap nut version (M10 and M12) are also implemented in the ETA assessment and it is ideal for architecturally sophisticated applications. Thanks to variable anchorage depths and easy installation, the FAZ II Plus can be used in many different ways.

Items in Range:

• 564688 - M10 x 105mm 10/20
• 564690 - M12 x 119mm 12/20

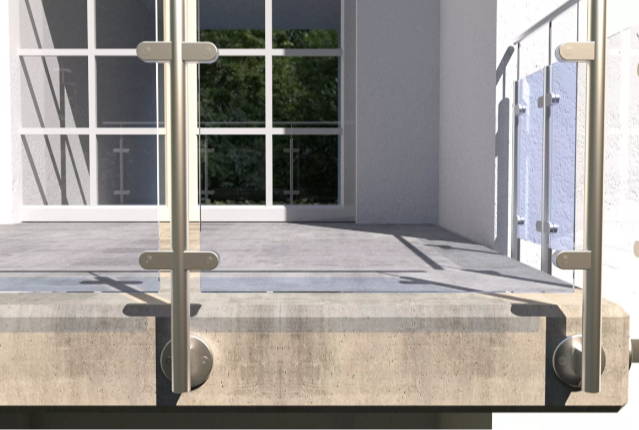

The tried-and-trusted expansion clip securely feeds the loads into the concrete and ensures a high load-bearing-capacity. The FAZ II Plus H is the optimal solution (for example) for the anchorage of railings in visible areas: The cap nut, not only gives the option for a better and refined optical design but also, ensures an accident free installation due to its closed shape.

Top Features:

• The cap nut is implemented in the ETA assessment and it is ideal for architecturally sophisticated applications.
• Quick and easier assembly without the need for drill hole cleaning (M8-M24).
• With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.
• An external independent assessment confirms the service life of anchorages up to 120 years. Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16).
• Due to its closed shape, the cap nut version ensures an accident free installation.
• Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
• The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
• The variable anchorage depths allow a millimetre-accurate adjustment to the loads.

Applications

• Guard rails

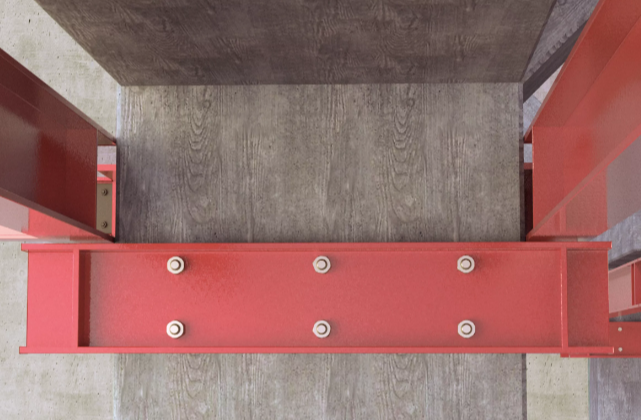

• Consoles
