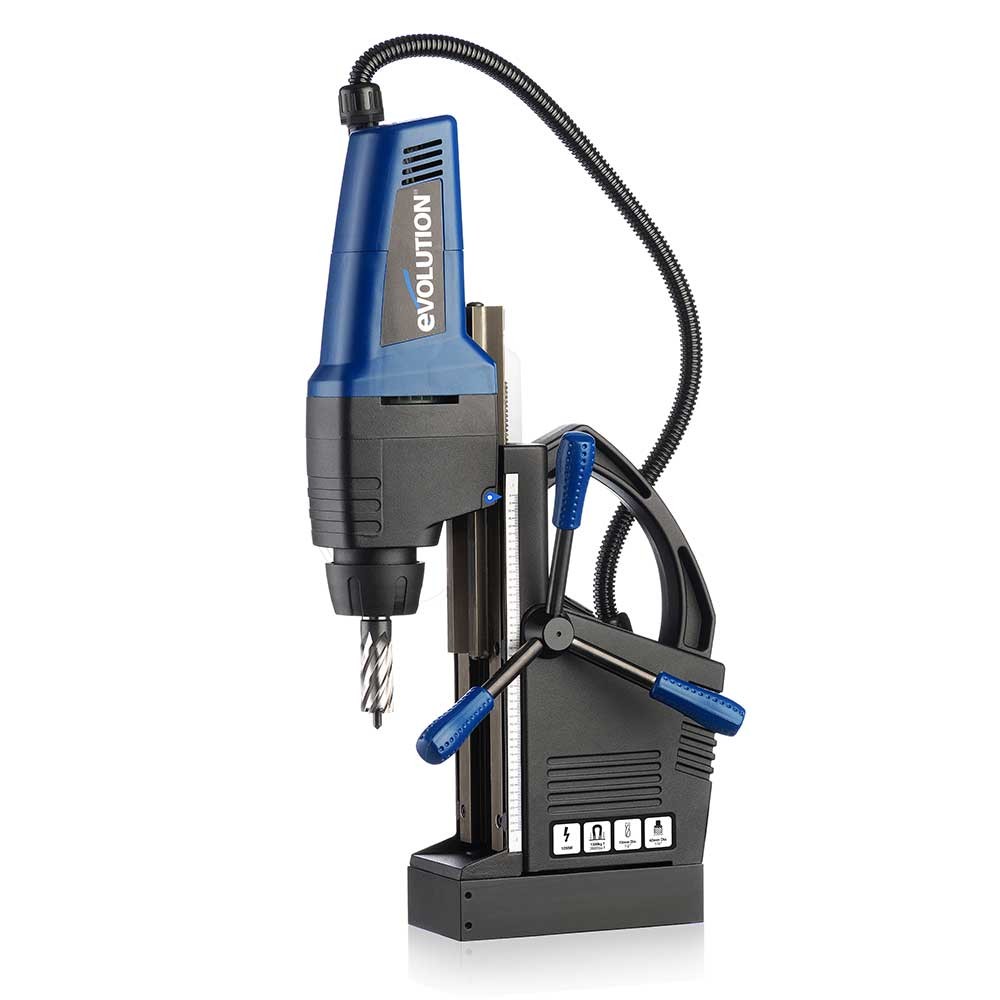

Evolution EVOMAG42 Magnetic Drill 42mm 240v

Product Overview:

Industrial Quality - This incredible Magnetic Drill is deceptive in its capabilities; although small in size it is well-suited for heavy-duty industrial and fabrication work. The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion.

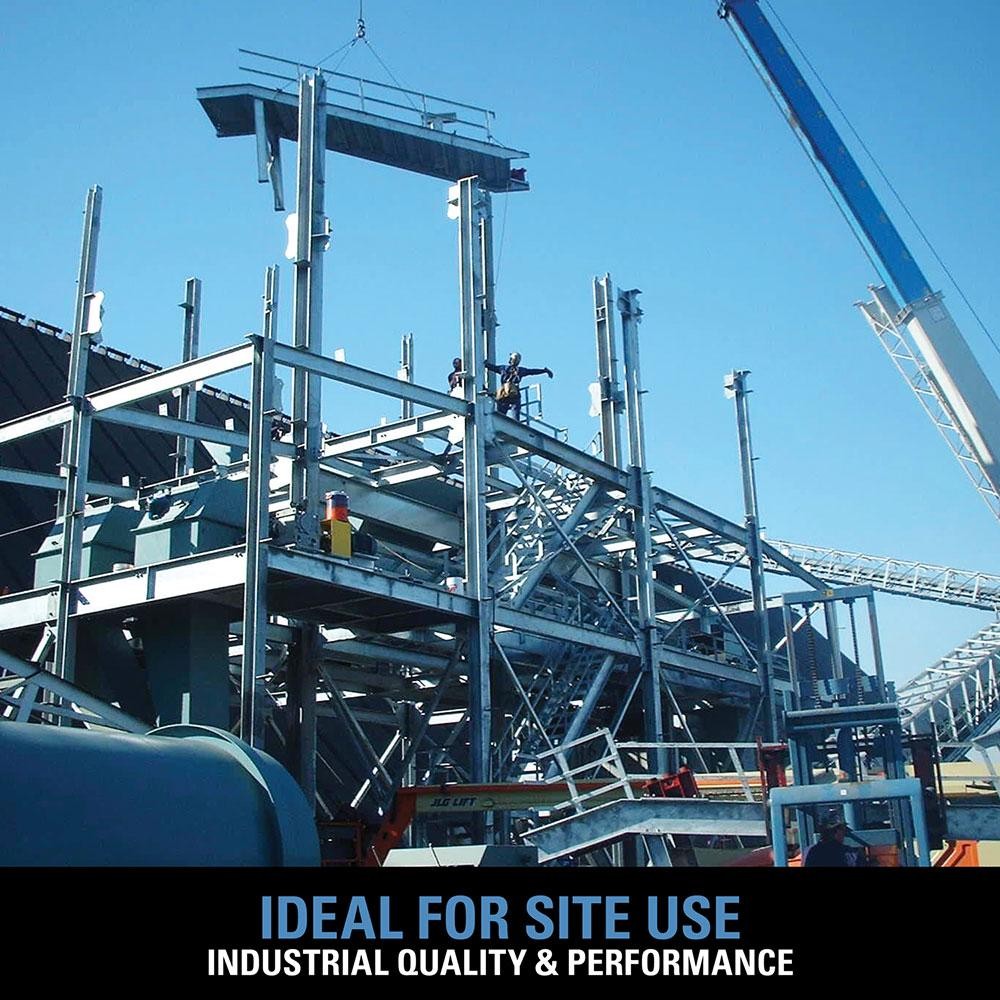

Ideal for site use - With so many buildings being built around a steel framework, a Magnetic Drill is an essential product and ideal for site use. It is also easy to carry (with the supplied case) and its light weight makes it manageable to position in both awkward and confined spaces.

The impressive EVOMAG42 offers incredible value with the capability to use up to 1-5/8 inch (42mm) cutters and 1/2 inch (13mm) twist drills. The EVOMAG42 also features an integrated coolant system for magnetic drilling.

Evolution also offers a large variety of tools to be used with the EVOMAG42. This offering includes a wide range of annular cutters, step drills and mini-cutters. Extend the life of your cutters and get more value by using Evolution Cutting Fluid.

Ideal For: Bridges, I-Beams & Framework
Includes Carry Case

Product Specification:

• Motor (110V 50Hz): 1200W
• Motor (240V 50Hz): 1200W
• Speed No Load: 450 rpm-1
• Number of Speeds 1
• Insulation Class 1
• Cable Length: 2.6m

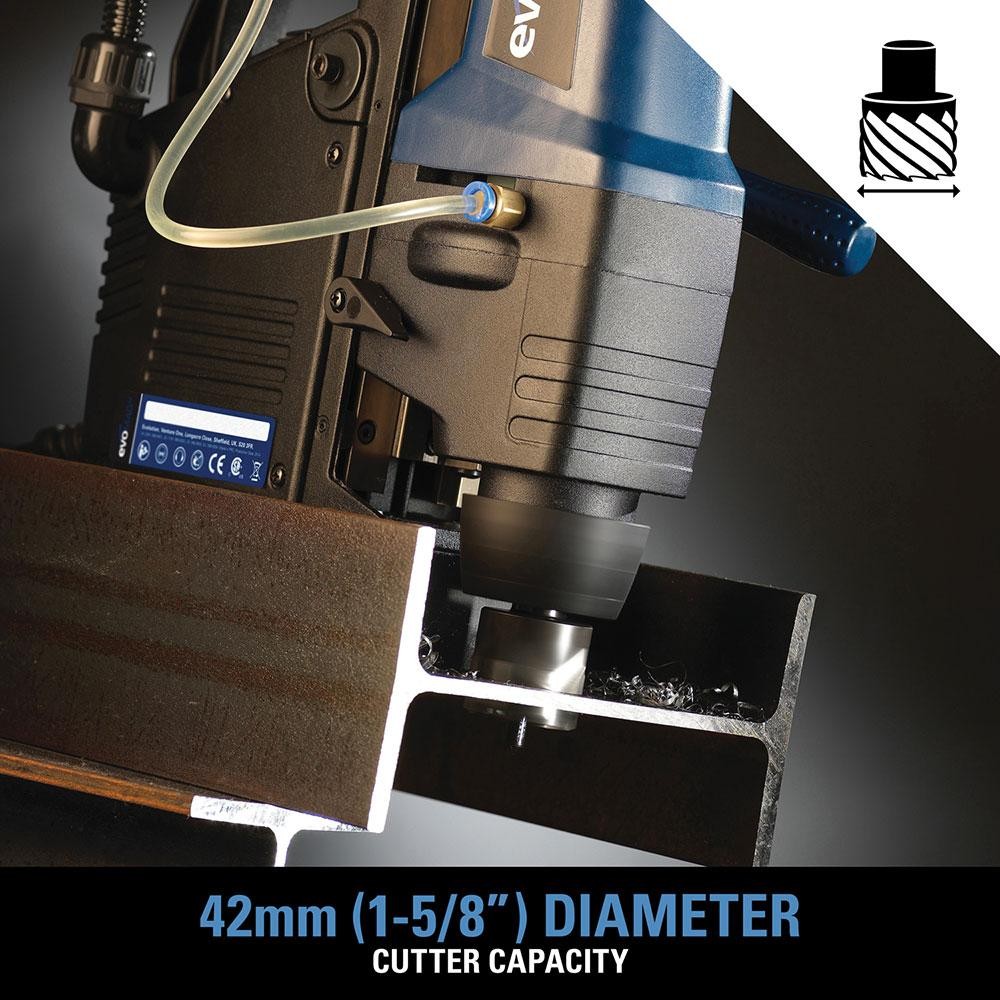

• Maximum Annular Cutting Capacity 42mm

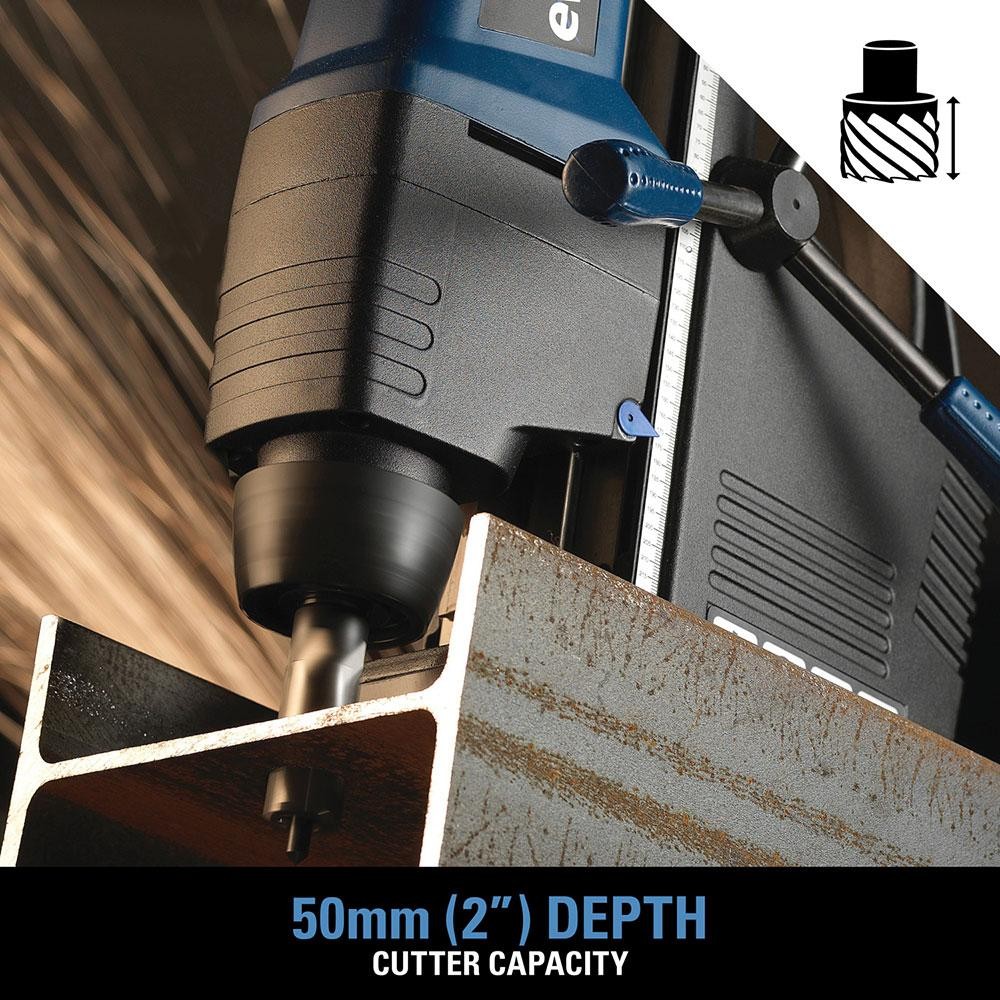

• Maximum Cutting Depth 50mm
• Cutter Shank 19mm
• Standard Twist Drill Capacity 13mm
• Magnetic Adhesion 1300kg f
• Minimum Plate Thickness 10mm
• Magnet Dimension 40mm x 90mm x 180mm
• Maximum Machine Height 654mm
• Minimum Machine Height 420mm
• Machine Width 222mm
• Sound Pressure Level LPA: 89.40dB(A) K:3dB(A)
• Sound Power Level LWA: 102.4dB(A) K=3 dB(A)
• Hand Arm Vibration 0.629m/s2 K= 1.5m/s2

The Evolution EVOMAG42 Magnetic Drill is versatile, accurate and fast, with strong magnetic adhesion (1500kg), the EVOMAG42 is an essential tool when performing heavy-duty industrial and steel fabrication work.

The cuts are precise and clean due to an optimised rotation speed (450rpm) and all popular broaching capacities are covered (12-42mm). and the innovative adjustable head system means twist drills can be used to full capacity.
